Cloud Orchestration in OmniLab ATS

The Cloud Orchestration app provides a high-performance, scalable way to manage Cuttlefish instances, particularly for ARM-based virtual devices (CHD). OmniLab ATS supports Cloud Orchestration so that you can run tests on virtual devices. Before starting to use virtual devices, follow OmniLab Android Test Station to install OmniLab ATS.

Overview

Cloud Orchestration lets OmniLab ATS delegate the management of Cuttlefish instances to a dedicated Cloud Orchestrator service. This approach offers several advantages over the existing local and remote modes while preserving a familiar user experience:

  • Parallel instance launching: Permits launching multiple Cuttlefish instances simultaneously, significantly reducing the overhead time before tests start.
  • Scalability: Suits large-scale testing environments.
  • Resource isolation: Decouples the test execution environment (ATS worker) from the device emulation environment.

Prerequisites

  • A host machine capable of running Docker
  • Access to the Cuttlefish orchestration Docker images

Set up Cloud Orchestrator service

The Cloud Orchestrator service manages the lifecycle of Cuttlefish instances. You can deploy the service in various environments, and it supports both x86 and ARM architectures:

  • Same host as ATS worker: Runs in a Docker container on the same machine
  • Separate machine: Runs on an on-premise server capable of running Docker
  • Cloud instance: Runs on a virtual machine in a cloud environment, for example, Google Compute Engine

Install and set up the service

Follow the Cloud Android Orchestration README to launch the service.

Auth and permissions

If the Cloud Orchestrator service is running on a remote machine, ensure that the ATS worker host has the necessary permissions to access it through HTTP requests. If HTTP connection isn't allowed, you might need to set up SSH port forwarding. For details, see Try cloud orchestrator.

Expected state

After the Cloud Orchestrator service is successfully started, it should be reachable using HTTP. You can verify its state by querying its API:

  • Ping the service: You should be able to reach the service endpoint from the OmniLab ATS worker host. For example, running curl -I http://localhost:8080/v1/zones/local/hosts should return a successful HTTP response (either HTTP/1.1 200 OK or a 302 Found redirecting to /username), confirming that the service is active and reachable.

Configure OmniLab ATS for Cloud Orchestration

Before starting OmniLab ATS, make sure all Cuttlefish instances on OmniLab ATS worker host are stopped. OmniLab ATS automatically launches and stops the virtual devices during the test cycle, and existing Cuttlefish instances conflict with instances managed by OmniLab ATS. For details on stopping Cuttlefish instances, see Stop Cuttlefish.

To enable Cloud Orchestration in OmniLab ATS, pass specific flags when starting OmniLab ATS:

mtt start --use_cloud_orchestrator \
  --cloud_orchestrator_service_url=http://HOST:PORT \
  --max_local_virtual_devices N \
  --use_host_network
  • --use_cloud_orchestrator: Enables the Cloud Orchestration feature.
  • --cloud_orchestrator_service_url: Specifies the URL where the Cloud Orchestrator service is listening, for example, http://localhost:8080.
  • --max_local_virtual_devices: Sets the maximum number of virtual devices that OmniLab ATS can simultaneously allocate. The default number is 0.
  • --use_host_network: Uses the host's network namespace for the container. This is required to access the Cloud Orchestrator service.

Run a test with cloud-orchestrated devices

This section describes the steps to run a test on cloud-orchestrated virtual devices.

Select devices

On the device list, OmniLab ATS displays cloud-orchestrated virtual devices as placeholders instead of their actual serial numbers. The placeholders are shown in the format of HOSTNAME:PORT (for example, thehostname:6520). The states are either Available or Allocated. A placeholder in the Available state indicates that the virtual device is not running and can be allocated for the test.

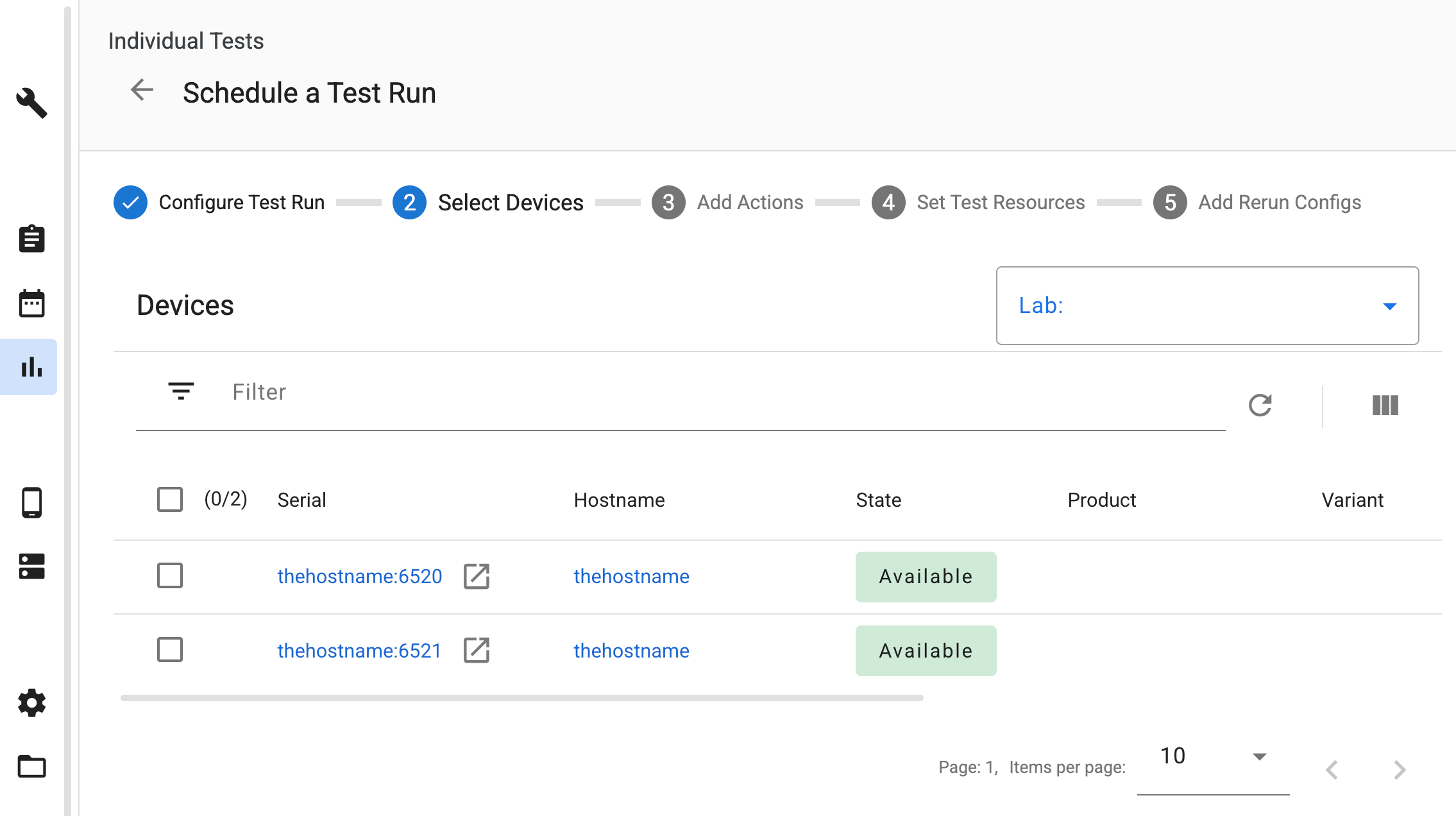

Select Cloud-Orchestrated Devices

Figure 1. Selecting cloud-orchestrated virtual devices.

Add device actions

When a test is scheduled on these devices, ATS automatically adds the required device actions to provision and manage the Cuttlefish instances during the test cycle.

Automatic Device Actions

Figure 2. Automatic device actions.

Set test resources

When scheduling a test, you must provide the required test resources. In the Set Test Resources section, ensure you map the uploaded files to the correct resource names:

  • Map the host tools package, for example, cvd-host_package.tar.gz, to the name cvd_host_package.
  • Map the device image zip to the name cvd_device_image.

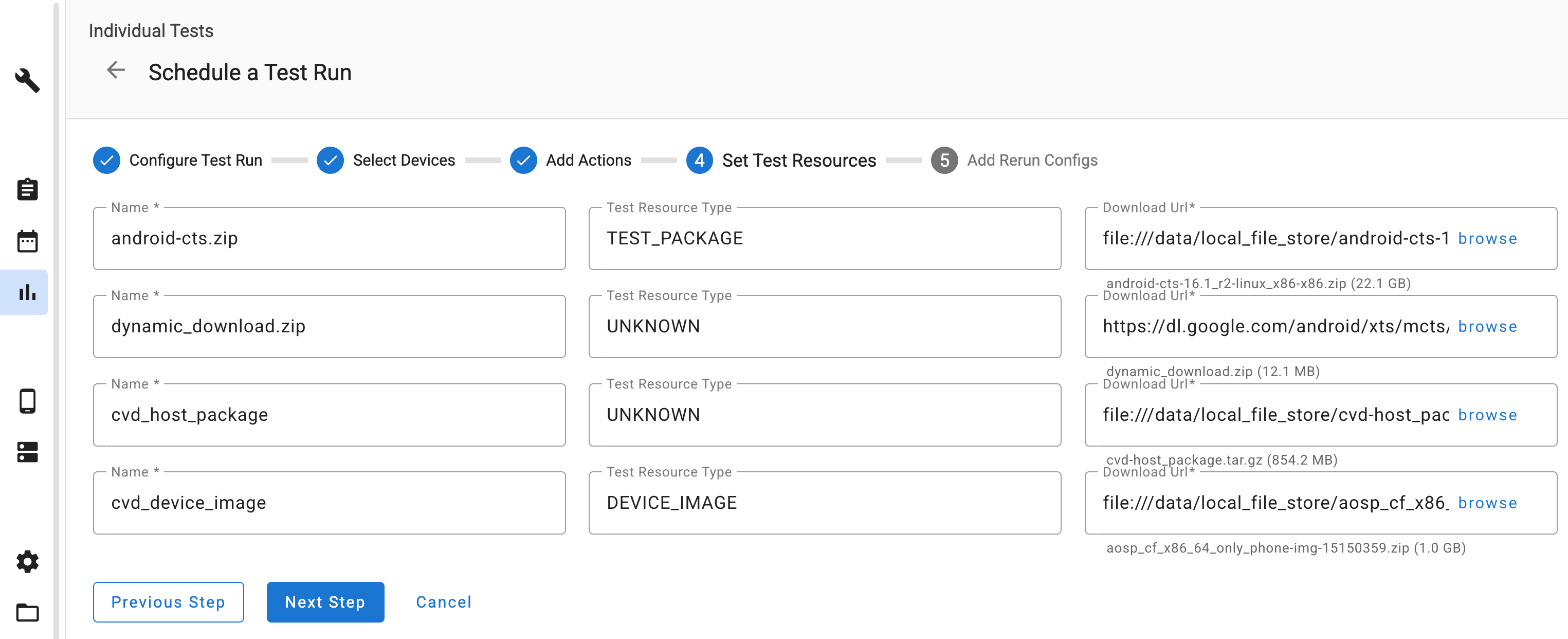

Test Resources for Cloud Orchestration

Figure 3. Mapping test resources.

View test runs and logs

After the test completes, you can view the logs in the output files section. Specific logs collected for Cloud Orchestrator-managed instances include:

  • launcher.log: Logs from the Cuttlefish launcher
  • kernel.log: Standard Android kernel log
